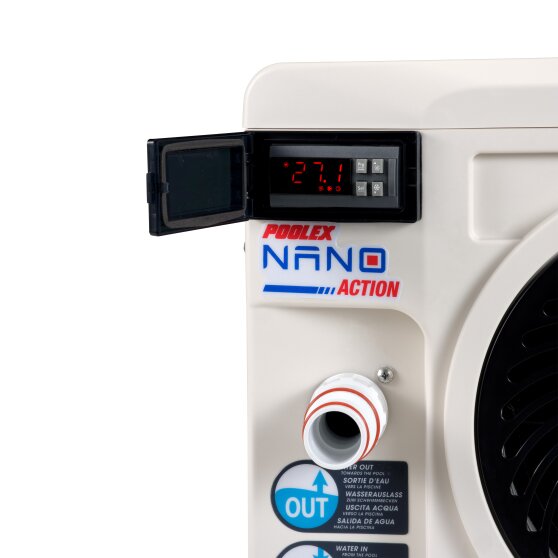

Pool heat pump 16m3 (4kW) - white
The swimming pool heat pump is an alternative for heating up swimming pool water. The heat pump has a capacity of 16.000 liters (4 kW) and can easily be connected to the filter pumps with capacities starting from 530 gal/hr. The heat pumps turns the outside air into heat and is already effective with an outside temperature of 8 degrees. The transferred heat can then be used to heat up the swimming pool water up to 40 degrees. The heat pump not only extends the swimming season, but it also allows you to enjoy using your swimming pool on less sunny days.
Easy installation
The heat pump can easily be connected to the swimming pool and the filter pump with simply two tubes. One tube connects to the filter pump and the other one to the swimming pool. Easy as that!
Durable heat pump
The heat pump for swimming pools is straightforward to operate by means of a digital screen to set the desired water temperature. The pump will turn off when the water has reached the set temperature and will automatically turn on again when the water reaches a lower temperature than programmed. This way, the pump only consumes energy when needed: so, super energy efficient!
The COP-value shows the efficiency of the pump. When the outside temperature is 26 degrees, yield increase can be up to 5,10 kilowatt hour! In other words, with the input of just 1 euro you can expect a return of 5 euros. In short: the swimming pool heat pump is easy to use and is an energy efficient alternative for heating up swimming pool water.
General characteristics
-
+
Article number
PC-NANO-A4+hose
EAN code
8720088269602
Product group
Frame pool accessories
Colour
White
Dimensions
-
+
Weight
28.58 kg
Weight
What is the total weight of the product, including the packaging?
Heat pump / heating
-
+
Dimensions
38.5 x 40 x 28 cm
Dimensions
What are the measurements of the pump?
Voltage
230V
Voltage
What is the voltage of the included heat pump of the swimming pool?
Wattage
900 watts
Wattage
How much power does the heat pump consume?
IP code
IPX4
IP code
Which IP code does the included heat pump have? The IP-code shows whether the heat pump is protected against moisture coming in from outside. A pump with an IP-code 5 is well protected against water, but is not entirely waterproof. Always check that there is not too much water on the pump.
Easy connect
Yes
Easy connect
Is the heat pump easy to connect with the use of a manual, also without any technical knowledge?
Noise from a meter’s distance
55db
Noise from a meter’s distance
What is the level of noise measured in decibels from a distance of one meter?
Diameter hose connection
32 mm, 38 mm
Diameter hose connection
What is the diameter of the hose connection of the heat pump?
Pool volume
≤ 16 m³ (4 kW)
Pool volume
What is the maximum amount of cubic meters of water that the pump can heat up ?
Control panel
Digital display
Control panel
How can this product be operated? The pump has an integrated digital screen.
COP
4, 5
COP
What is the COP-value of the heat pump? This value shows the ratio between the energy used by the heat pump and the amount of heat it produces. The higher the value, the less energy the pump needs to heat up the water.
Heating temperature range
15 - 40 ℃
Heating temperature range
Up until how many degrees can the pump heat up the swimming pool or spa?
Operating range
10 - 43 ℃
Operating range
Starting from which outside temperature does the pump work?
Filtercapacity
530 gal/h (2006 liters)
Filtercapacity
What is the filter capacity of the heat pump? This refers to the minimal filter capacity of the filter pump that the heat pump needs to work.
Warranty
2 years
Warranty
What is the warranty period of the heat pump?
Packaging information
This product comes in 2 boxes with a total weight of 28.58 kilos.
-
+
Box 1
EAN code
3700691413680
Dimensions (L x W x H) in cm
46 x 41.5 x 37
Gross weight (in kg)
28
Number of
1
Box 2
EAN code
6920388659284
Dimensions (L x W x H) in cm
32 x 23.5 x 19
Gross weight (in kg)
0.58
Number of
1
Standard included
- Heat pump
Want to know more? View the frequently asked questions about this product
Available documents
